Load break elbow cable connector

Short Description:

The detachable connector adopts prefabricated built-in shielding layer, refills the insulating layer, and finally sprays the outer shielding layer, which is composed of three layers. During installation, extrusion installation is adopted, and the full sealing is realized through interference fit. The product has a compact structure, takes up little space, can be touched by electricity, has no insulation distance requirement, and can realize the safe use requirements of full insulation, full sealing, and full shielding.
Mainly used for the connection of 10kV transformers, switches and cable branch boxes, widely used in various fields of electric power, petrochemical industry, metallurgy, railway port and construction.


Product Detail

Main features

★ Take the geometric structure of the stress control unit and the configuration of the inner shield layer to alleviate the electric field concentration, the installation, the extrusion installation, and the interference fit to achieve full insulation and full sealing.
★ The product has a compact structure, takes up little space, can be touched by electricity, has no insulation distance requirement.
★ The product is fully insulated, fully sealed and fully shielded.
★ Take the geometric structure of the stress control unit and the configuration of the inner shield layer to alleviate the electric field concentration, the installation, the extrusion installation, and the interference fit to achieve full insulation and full sealing.
★ The product has a compact structure, takes up little space, can be touched by electricity, has no insulation distance requirement.
★ The product is fully insulated, fully sealed and fully shielded.

APPLICATION

★ suitable for XLPE power cable with 25 ~ 500 mm’ cross section of single core and three cores Cu or Al conductor
★ suitable for the terminate extruded screened cable and other screened form
★ suitable for connecting with 10~35kV transformers, switch- gears and outdoor cable distribution boxes

STANDARD
electrical properties: IEC60502, GB/T12706
bushing - standard: — EN50180, EN50181, DIN 47636

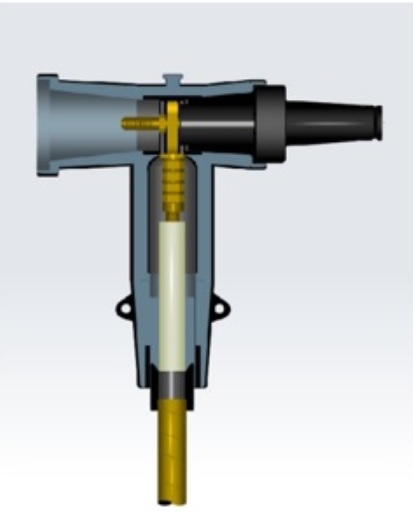

zbt3

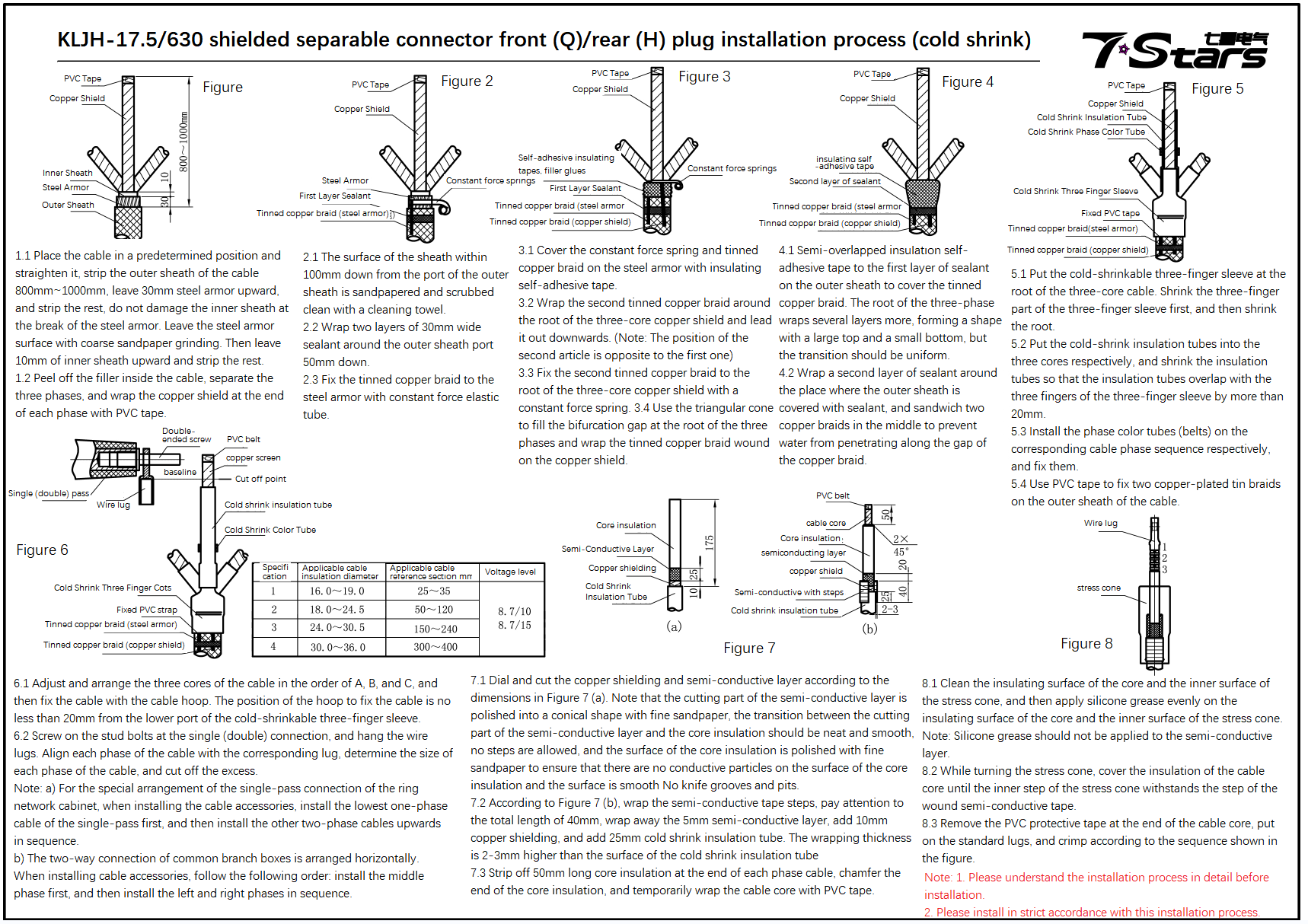

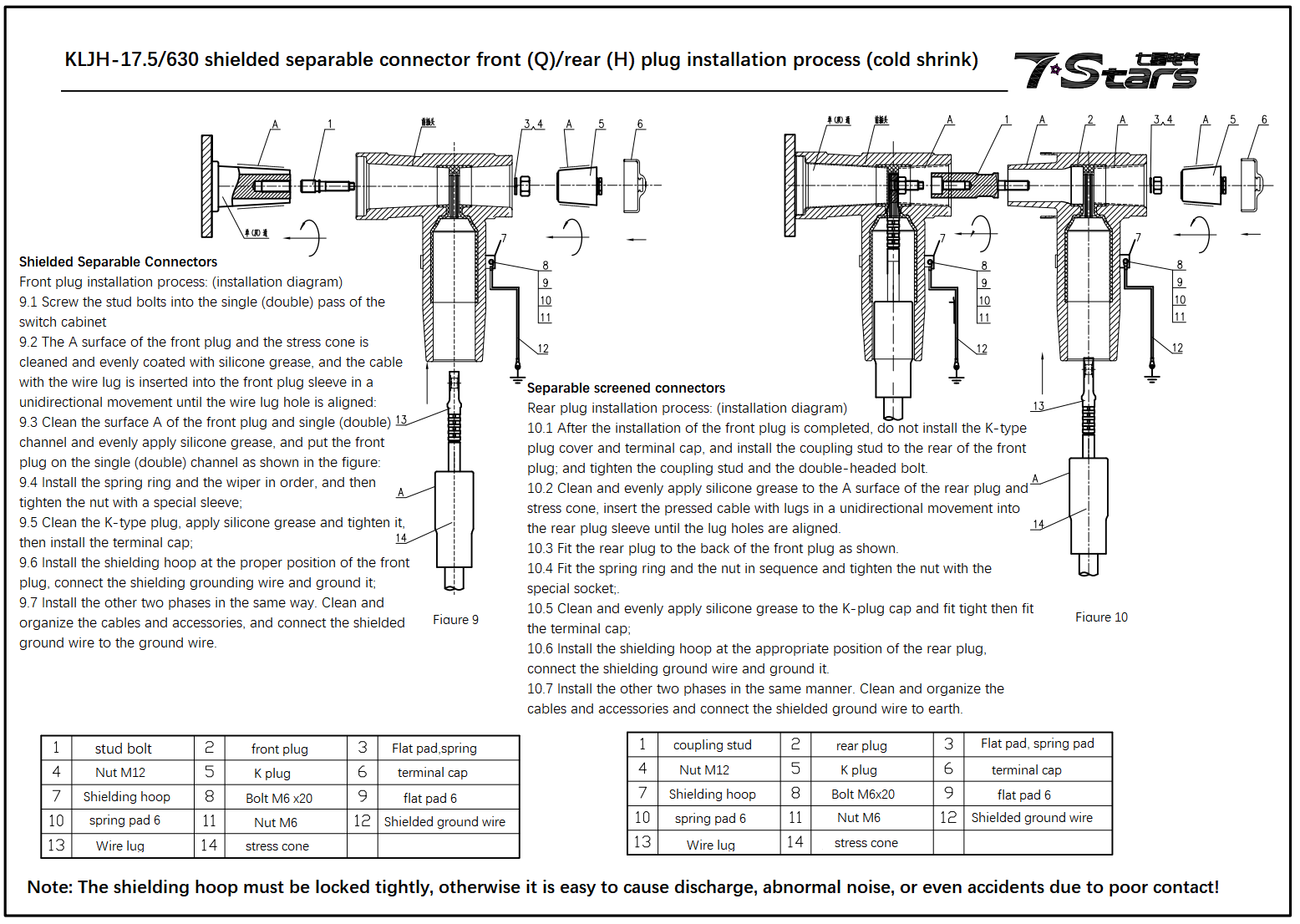

plug installation process

说明书-1
说明书-2

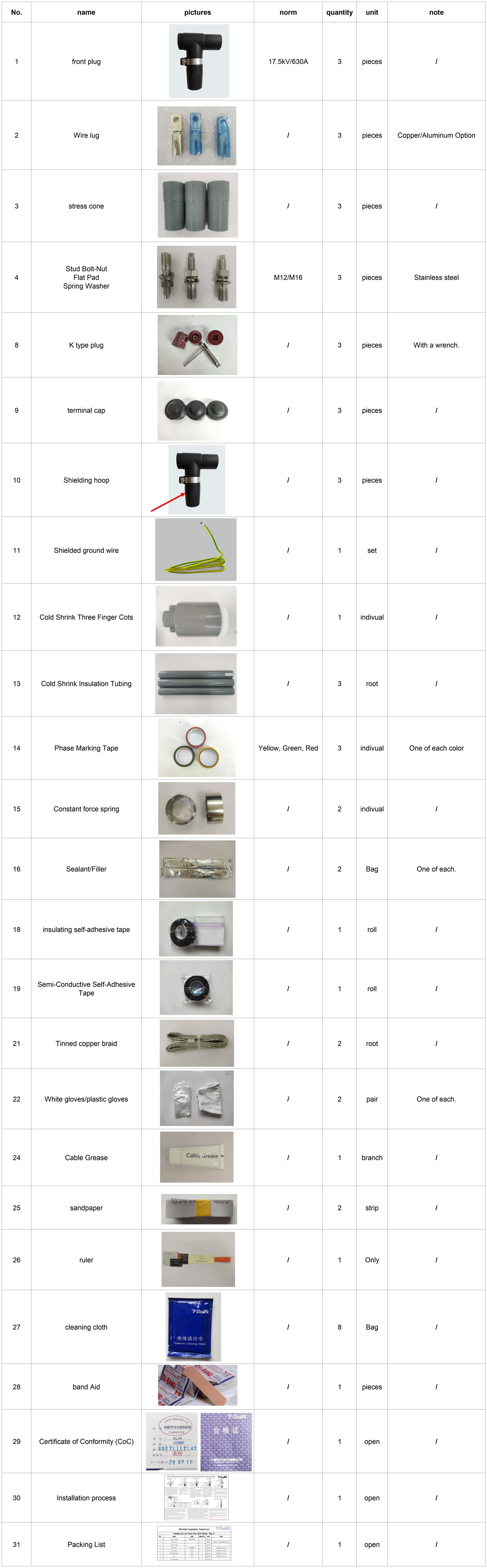

15kV Cable Joint packing list

CPT16

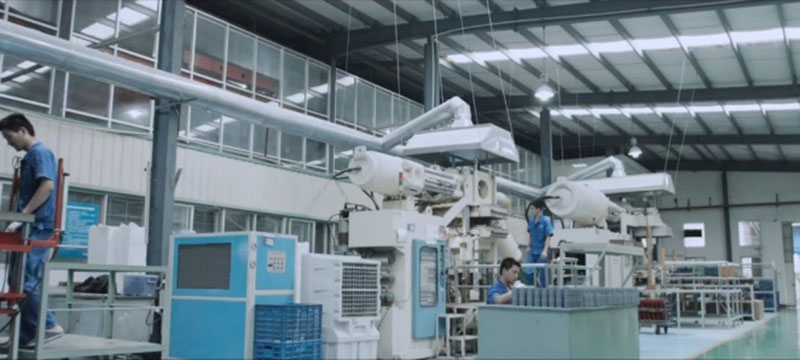

Our Factory View
